ZFS File Server

Specifications

Total storage raw: 10TB
Total storage usable: 5TB

Case
  • Norco RPC-4220 – 20 hot-swap bay, 4RU chassis
PSU
  • Corsair HX 750W
Motherboard
  • Supermicro X8STE – single socket 1366; 2x Intel 82574L GigE NIC; Matrox G200 GPU
CPU
  • Intel Xeon E5620 Westmere 2.4GHz Quad Core
RAM
  • 12GB (3x4GB) Kingston 240-pin DDR SDRAM ECC Unbuffered
Controller Cards
  • Intel SASWT4I (LSI SAS1064E chipset) PCIe x4 4-port SAS HBA
  • LSI 9201-16i 6GB/s PCIe 2.0 x8 16-port SAS HBA
Hard Drives
  • Seagate 7200.10 160GB SATA 3Gb/s (system drive)
  • 10x Seagate 1TB Constellation ES SATA drives (mix of ST1000NM001 and ST1000NM0033) (zfs data pool)
Optical Drives
  • Samsung slimline DVD-RW
Operating System

Description

The system is used for media (pictures, music, movies), software, backups, and personal document storage. All this data is made available via CIFS and NFS shares.

ZFS Configuration

  • 5x 2-way mirrors
    • Each mirror is 2x 1TB drive yielding 1TB usable space each
  • 1x spare drive

Pictures

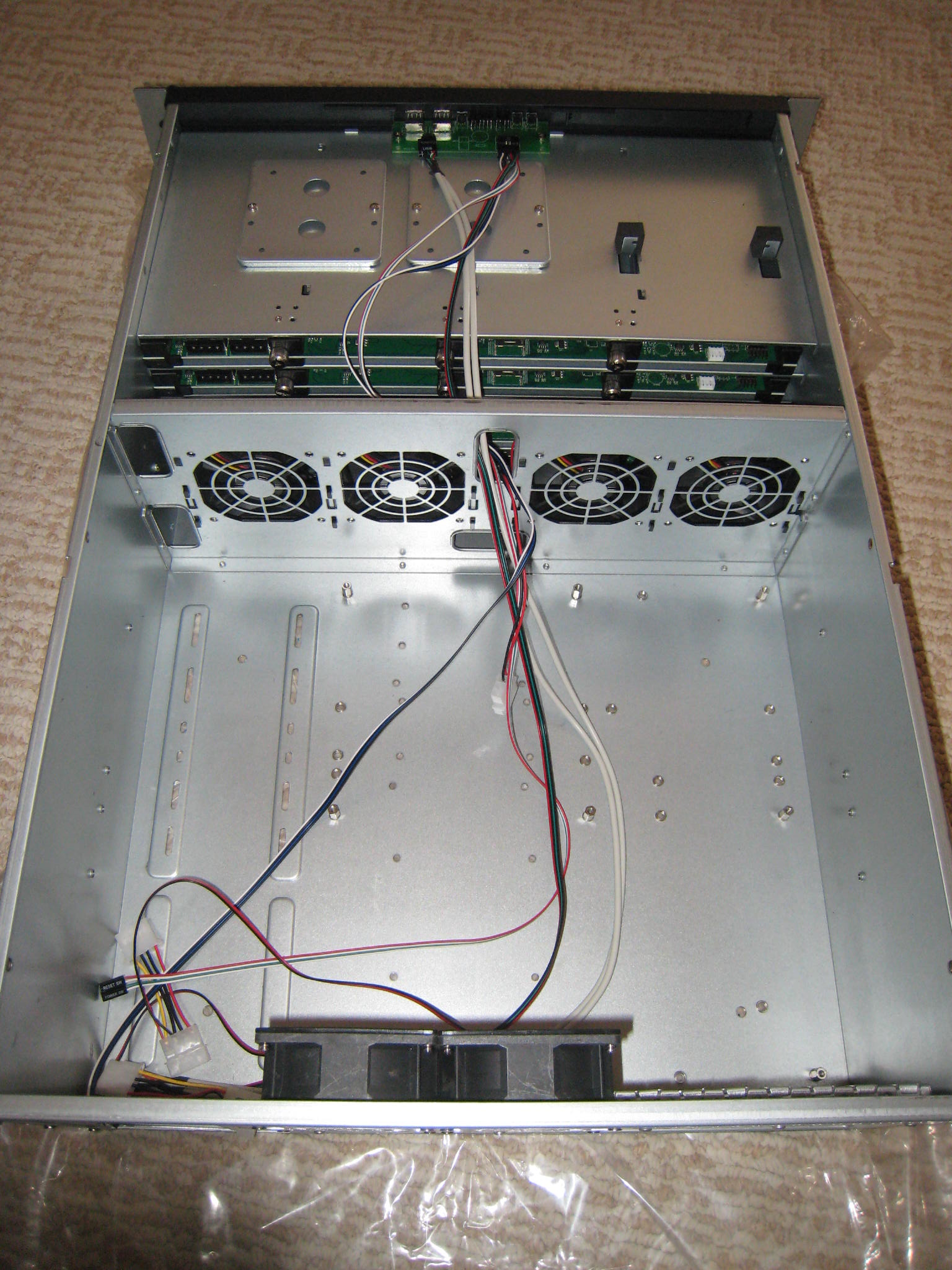

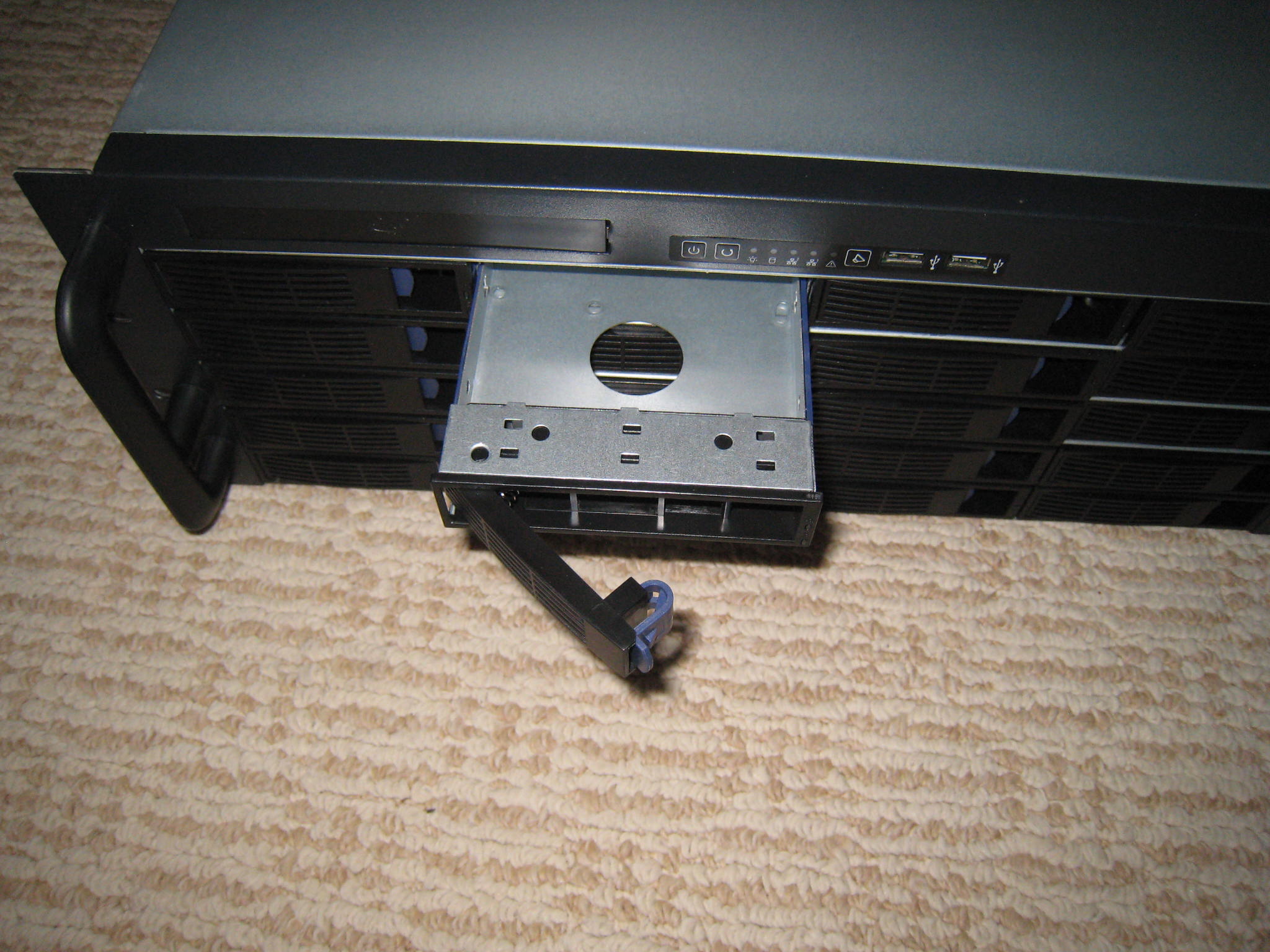

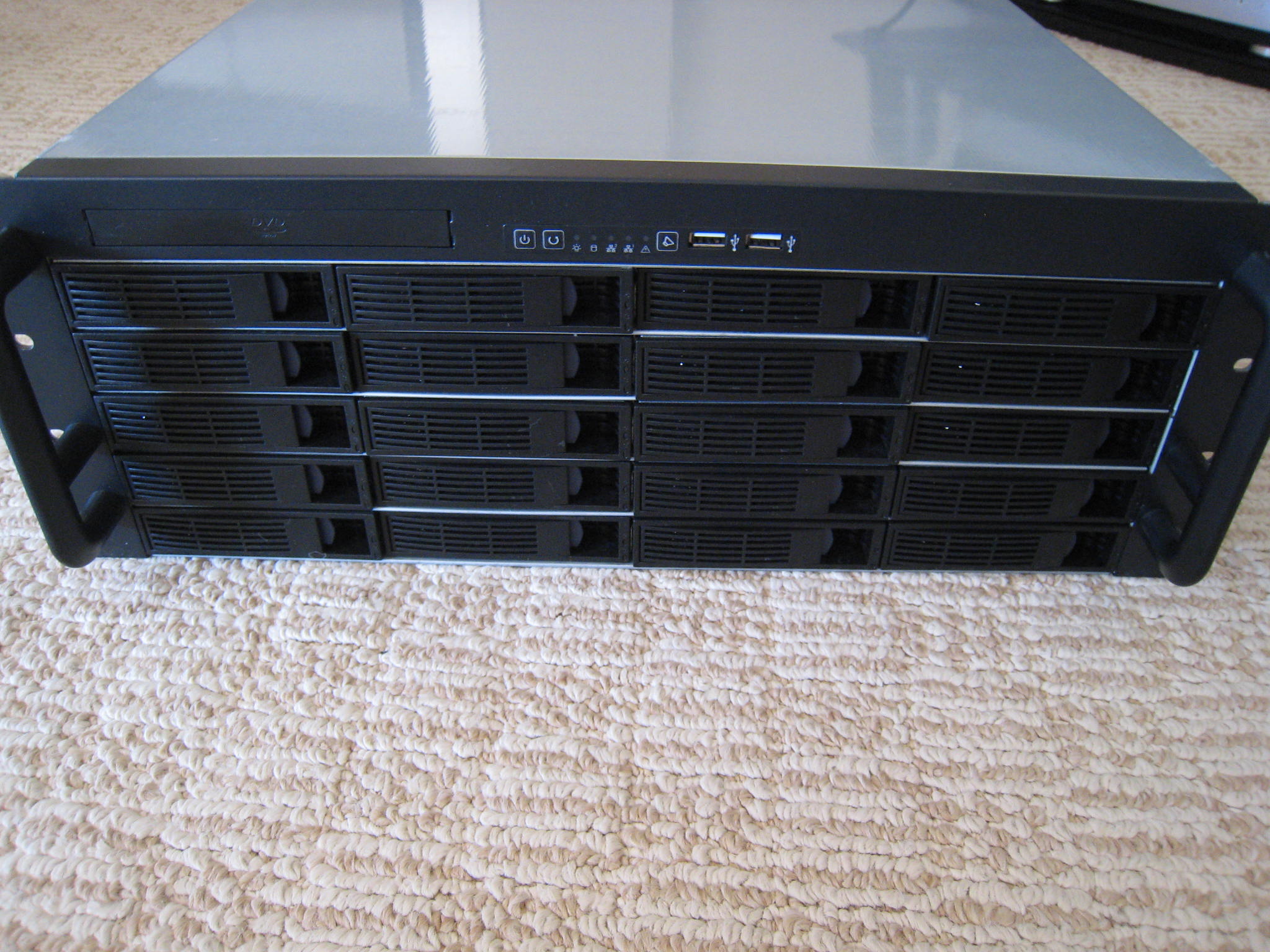

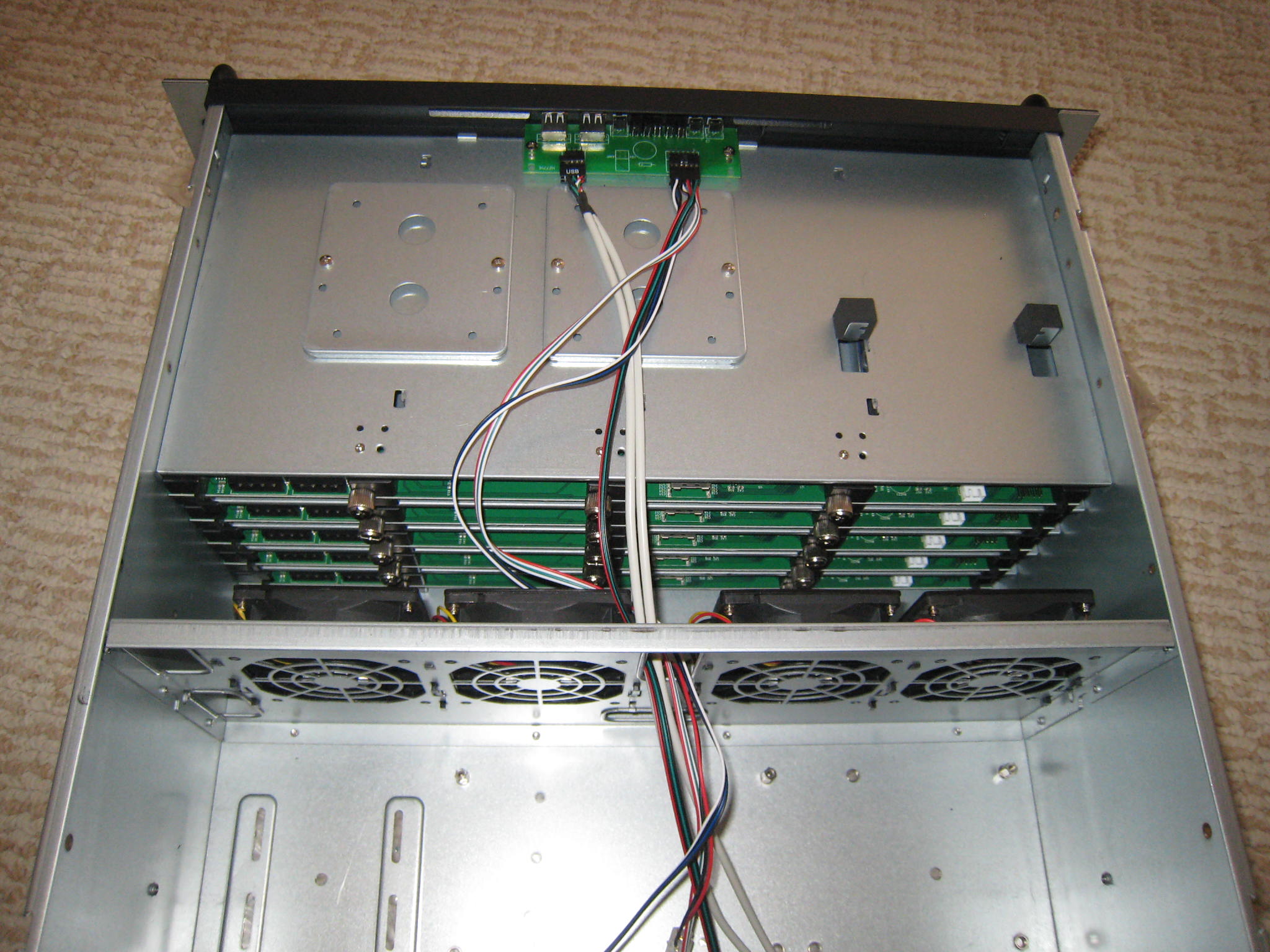

Norco RPC-4220
Norco RPC-4220
Norco RPC-4220
Norco RPC-4220

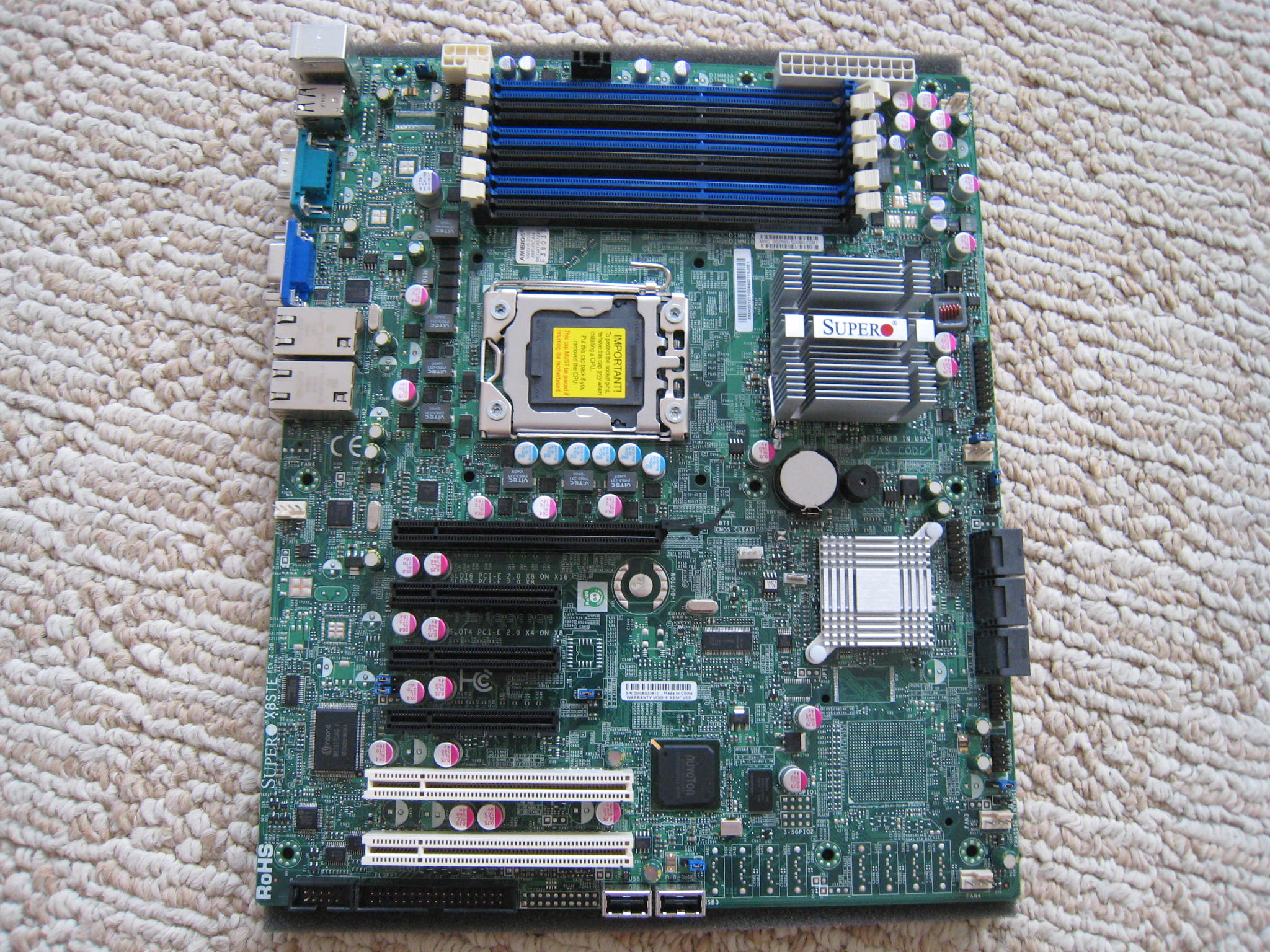

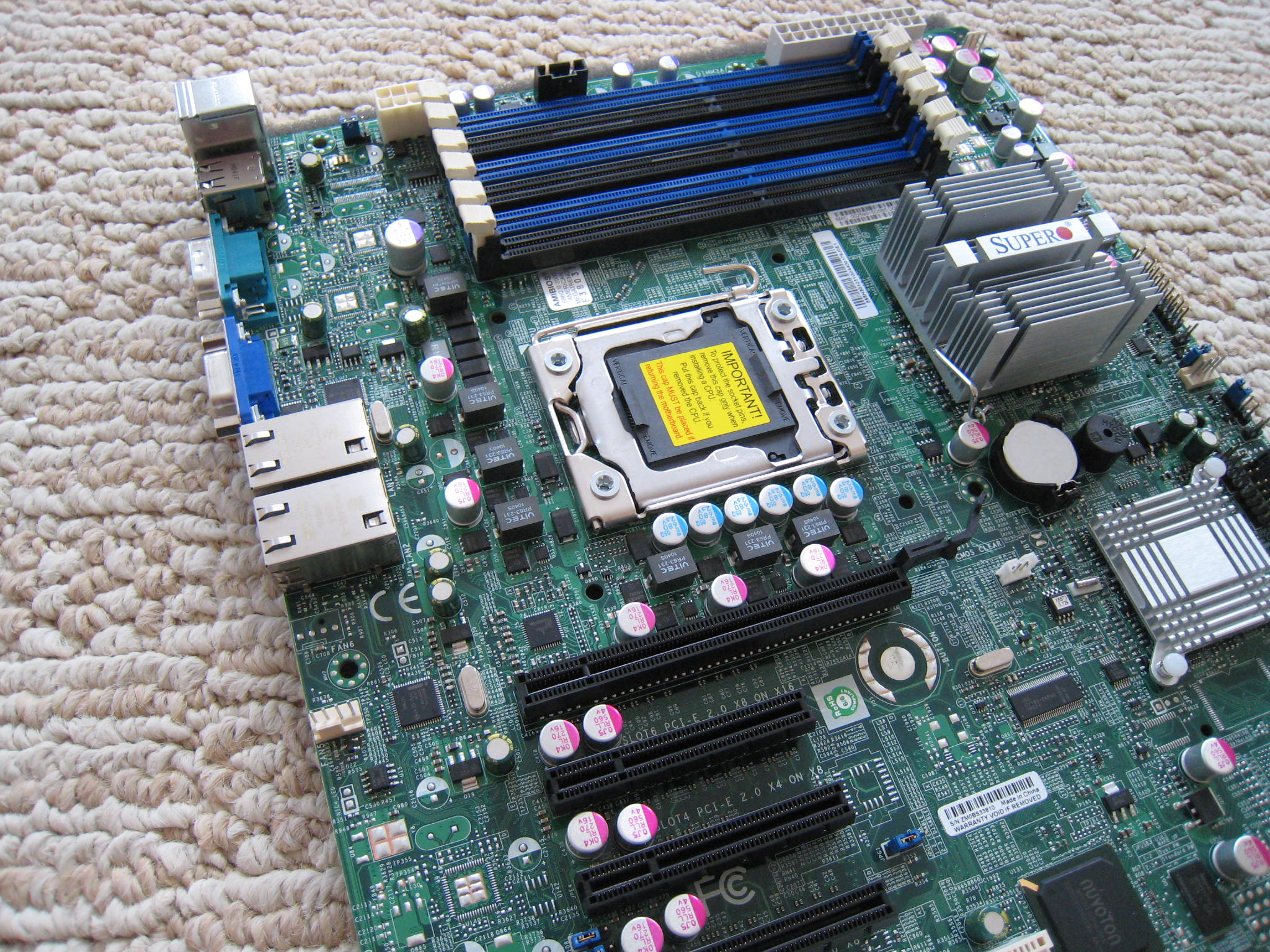

Supermicro X8STE Board
Supermicro X8STE Board

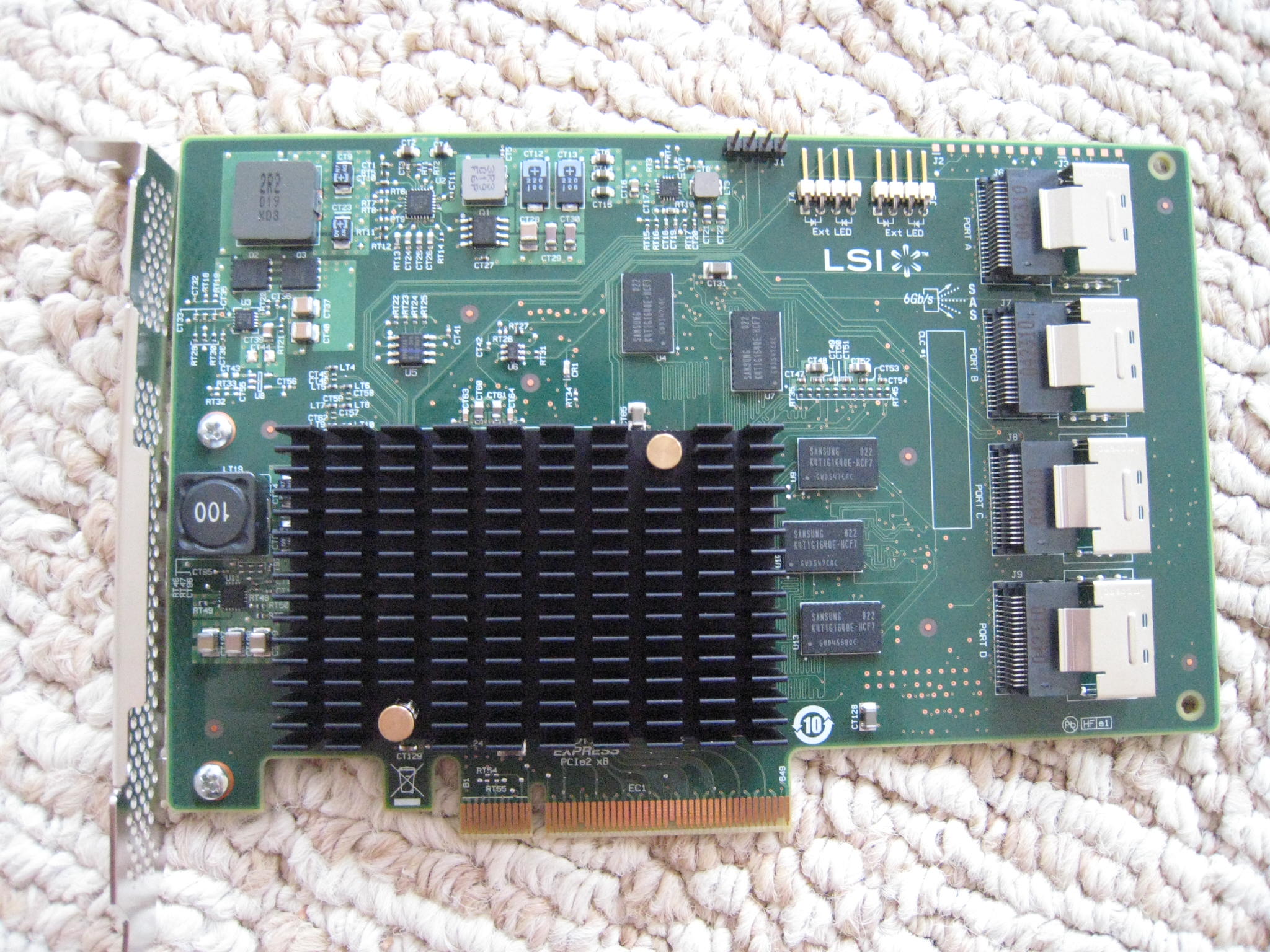

LSI 9201-16i HBA

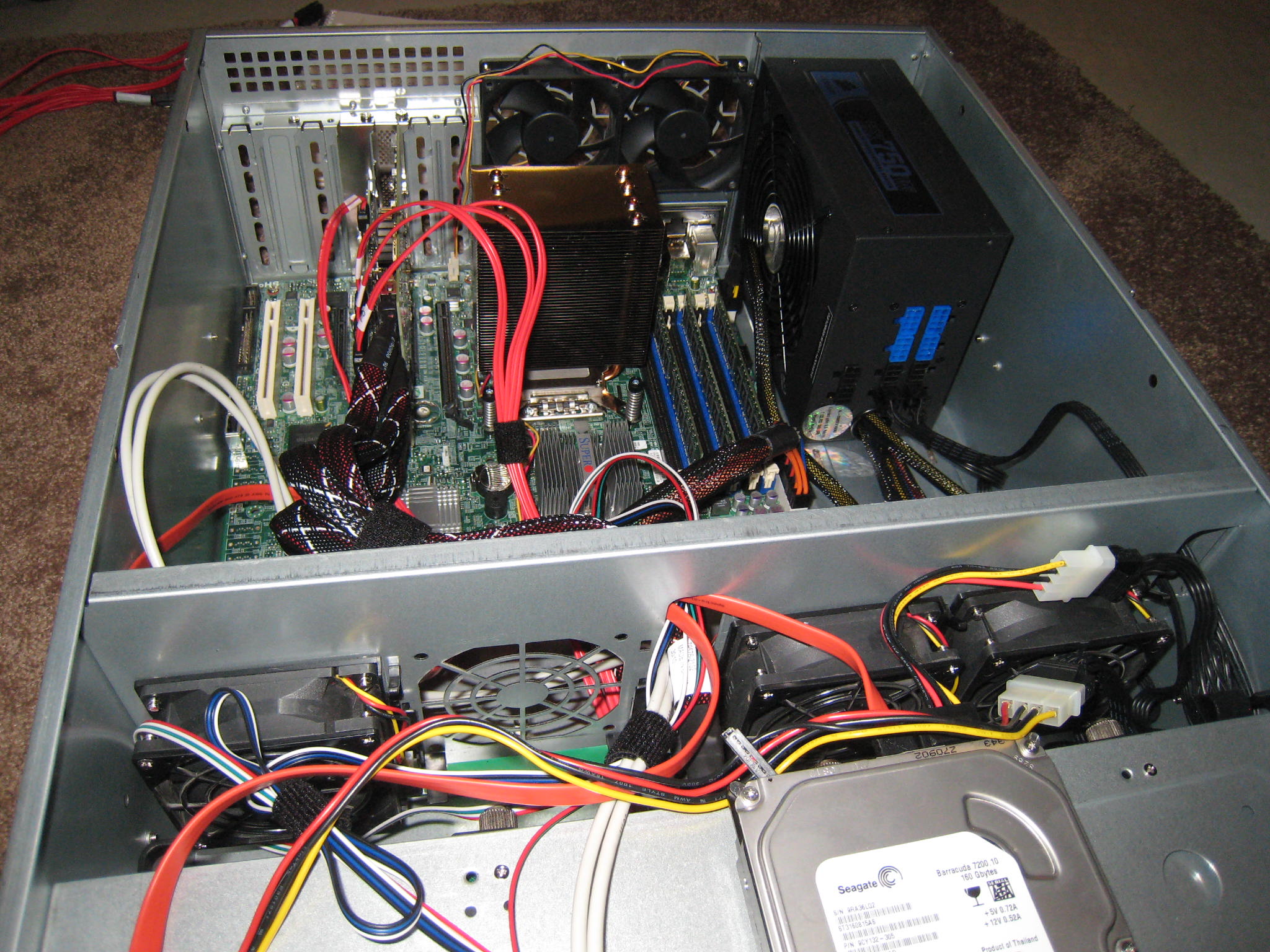

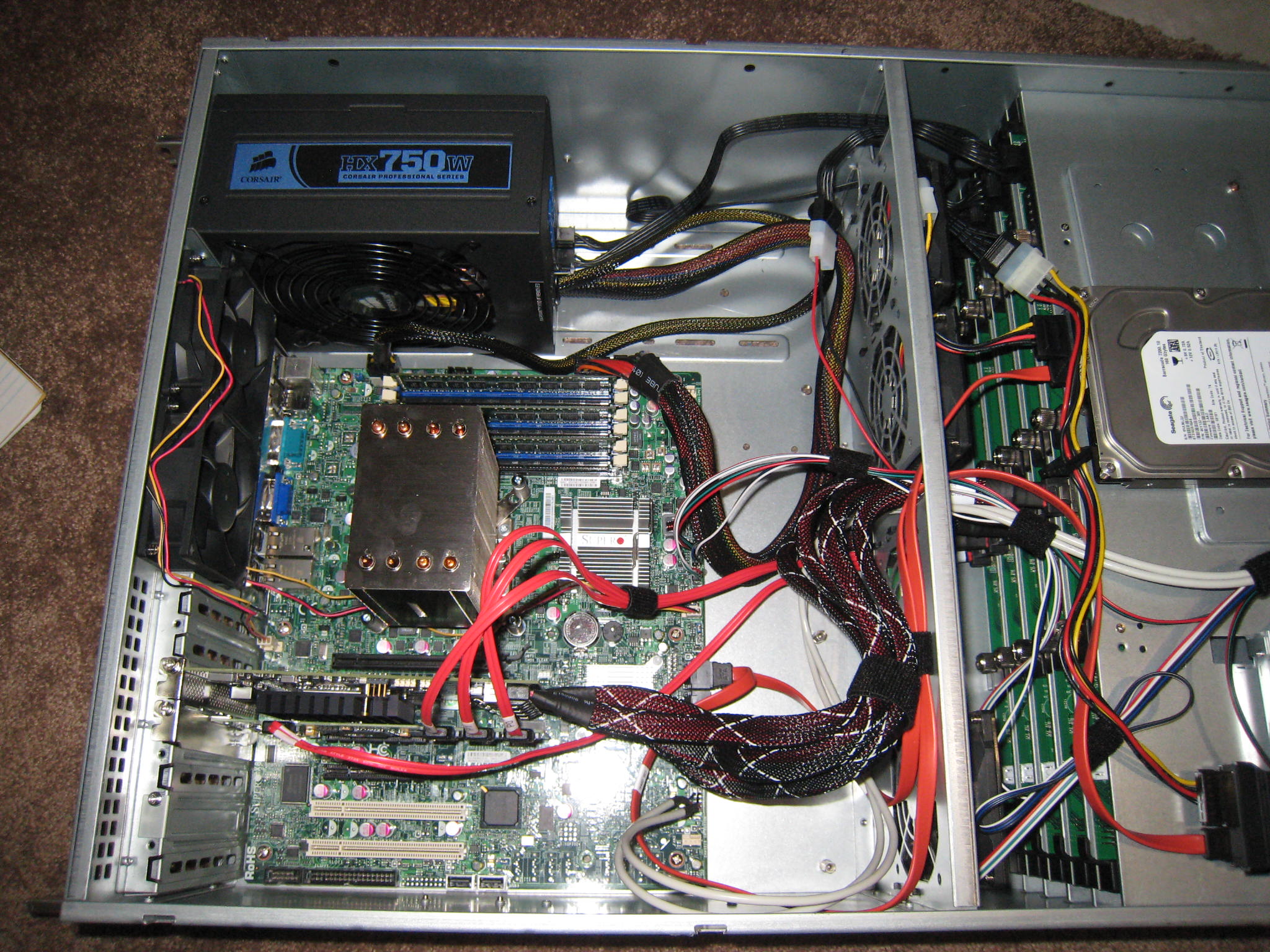

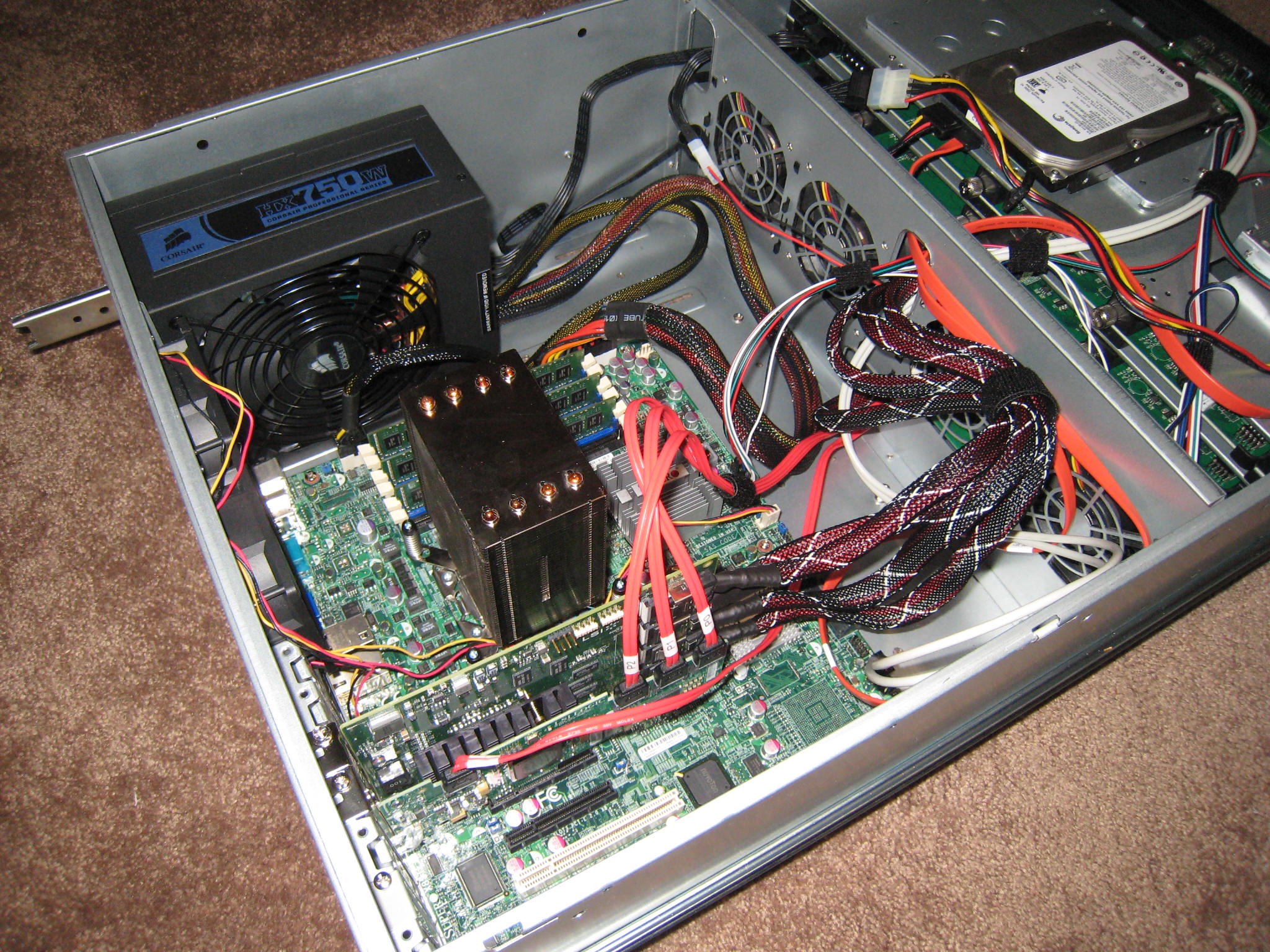

Inside ZFS File Server
Inside ZFS File Server
Inside ZFS File Server

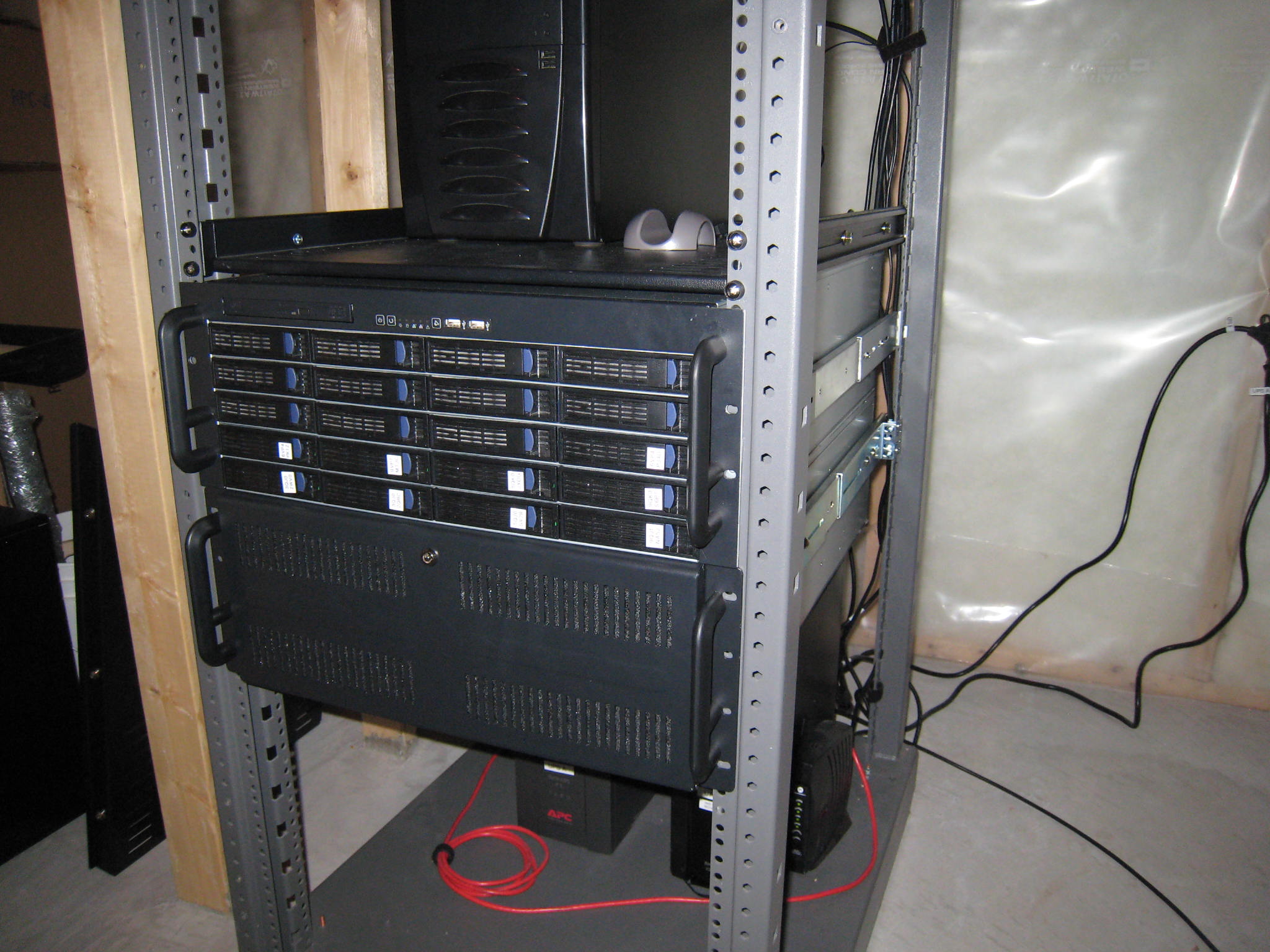

RPC-4220 in the Rack
RPC-4220 in the Rack

Updates

May 4 2011: Added a picture of the server mounted in the rack
Nov 16 2016: Updated information on number and type of drives along with size of the ZFS pool
